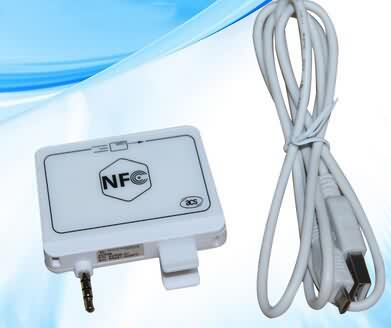

UCF-ACR35 NFC MobileMate Card Reader is the perfect tool that you can use with your mobile device. With the combination of two card technologies into one, it provides its user flexibility to use magnetic stripe cards and smart cards without the additional cost. ACR35 NFC MobileMate seamlessly unites card reader functionality with mobility which allows you to access secure applications anytime,anywhere.

Request A Free Quote

3 + 0 = ?

More Detail

1.1. Secure Card Reader

UCF-ACR35 NFC MobileMate is a reliable card reader that uses AES128

encryption algorithm and DUKPT Key Management System

for a secure transaction. It is capable of reading both highcoercivity

and low-coercivity magnetic cards that conform to ISO

7810 and ISO 7811 standards. Also, it supports ISO 14443 Type

A and B cards, MIFARE., FeliCa, and most NFC tags and

devices compliant to ISO 18092 standard, which makes it an

ideal device for a broad range of solutions, such as e-Banking

and e-Payment.



1.2. Ingenious Design

UCF-ACR35 NFC MobileMate is specifically designed to be brought anytime, anywhere. With its

rechargeable Lithium-ion battery as its power supply and standard 3.5 mm audio jack interface, it

allows UCF-ACR35 NFC MobileMate to be integrated impeccably into any smartphone or tablet available in

the market.

Feature

3.5 mm Audio Jack Interface

Powered by a Lithium-ion battery (rechargeable through USB cable)

Smart Card Reader:

Built-in antenna for contactless tag access, with reading distance of up to 50 mm

(depending on tag type)

Supports ISO 14443 Part 4 Type A and B cards

Supports MIFARE.

Supports FeliCa

Supports ISO 18092 Tags (NFC Tags)*

Built-in anti-collision feature (only one tag is accessed at any time)

NFC Support:

Card reader/writer mode

Magnetic Stripe Card Reader:

Reads up to two tracks of card data

Capable of bi-directional reading

Supports AES-128 encryption algorithm

Supports DUKPT Key Management System

Supports ISO 7810/7811 magnetic cards

Supports Hi-coercivity and Low-coercivity magnetic cards

Supports JIS1 and JIS2

Supports Android. 2.0 and above**

Supports iOS 5.0 and above**



Compliant with the following standards:

ISO 18092

ISO 14443

CE

FCC

VCCI

RoHS 2

REACH

*Topaz type is excluded. Please contact ACS for more details.

3.0.Typical Applications

Mobile Banking

Mobile Payment

e-Healthcare

Loyalty Program

Specification

Power Supply

Battery Powered……………………….. 3.2 V to 3.7 V DC Lithium-ion Battery (rechargeable through USB)

Operation Time ………………………… Approx. 2 hrs (continuous operation)

Communication Interface

Type….. …………………………………… Bi-directional Audio Jack Interface

Connector………………………………… 3.5 mm 4-pole Audio Jack

Speed……………………………………… Max. 2.6 Kbps

Magnetic Card Interface

Standard …………………………………. ISO 7810/7811 Hi-Co and Low-Co Magnetic Cards

………………………………………………. JIS 1 and JIS 2

Card Swipe Speed ……………………. Max. 10 in/s

Card Swipe Cycles……………………. Min. 500,000

Contactless Smart Card Interface

Standard …………………………………. ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa

Protocol…………………………………… ISO 14443 T=CL for ISO14443-4 compliant cards and T=CL Emulation for

MIFARE Classic 1K/4K, ISO 18092, FeliCa and NFC tags

Operating Frequency ………………… 13.56 MHz

Operating Distance …………………… Up to 50 mm (depending on tag type)

Smart Card Read/Write Speed……. 106 Kbps, 212 Kbps, 424 Kbps

Physical Specifications

Dimensions ……………………………… 60.0 mm (L) x 45.0 mm (W) x 13.3 mm (H)

Color ………………………………………. White

Weight…………………………………….. 29 g (with battery)

Cable length, cord, connector …….. 1 m, Fixed (detachable), USB A

Operating Conditions

Temperature ……………………………. 0 °C –50 °C

Humidity ………………………………….. Max. 90% (non-condensing)

Mean Time Between Failure ………. 300,000 hrs

Certifications/Compliance

ISO14443, ISO/IEC 18092, CE, FCC, VCCI, RoHS 2, REACH

AndroidTM 2.0 and above, iOS 5.0 and above

Device Driver Operating System Support

Android is a trademark of Google Inc.

MIFARE and MIFARE Classic are trademarks of NXP B.V
