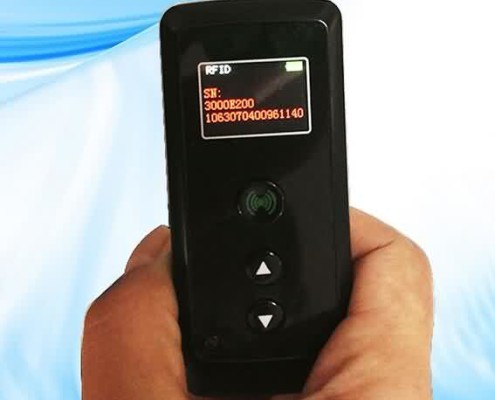

UCF-H501 reader is a super small UHF RFID read and write device that can be long time standby. Beautiful appearance, compact size, easy to take and with 0.95` true color, OLED screen. It can display the number of the tag, the operation interface for user-friendly, user operation more convenient, intuitive. It can store the tag data offline, upload tag data via Bluetooth. The reader can support the protocol of EPC C1 G2/ISO 18000-6C. The target market is for the occasions which need of portable, low cost, mobile data acquisition such as Anti-fake, Logistics, Equipment inspection, etc.

Request A Free Quote

2 + 3 = ?

Feature

  • Working frequency: 840~930MHz(According to the demands, FHSS)
  • Protocol: EPC C1 GEN2/ ISO 18000-6C
  • Bluetooth: 3.0 EDR+4.0 BLE dual mode
  • It can achieve 100meters over the remote communication under the open

environment and BLE equipment

  • Storage: Store 100tag data offline, upload  via Bluetooth
  • USB: Micro USB, the virtual U disk device, store upgrade file
  • Firmware upgrade:Firmware upgrade  offline via update and upgrade file
  • Working voltage: Lithium 3.7V/780mAh,  charge by general micro USB cable
  • Working time: Work more than 3hours for continuous reading tag
  • Operating temperature: 0℃~55℃
  • Storage temperature: -10℃~70℃
  • Outline size: 88mm*39mm*16mm
  • Keys: 4functional keys
  • Display: 0.95` true color, OLED screen
  • Voice: Speaker
  • Distance of read and write tags: Alien 9662 tag read distance is about 10~15cm
  • Provide Bluetooth API and demo program under PC and Android, IOS not

support
