Ultrawise Technology supply wide variety of RFID tags such as RFID Keyfob, RFID wristband, Animal Ear Tag, tire tag, anti-metal tag, laundry tag, PVC epoxy keyfob, disc tag, coin tag, RFID inlay, Self destructible label etc.

Custom RFID Keyfobs

RFID Key Fob RFID Key Fob
RFID Key Fob RFID Keyfob ABS RFID Keyfobs Leather RFID Keyfob keyfob3 keyfob leather key fobs keyfob2 transparent keyfob

Material

ABS, PVC, Leather

Available Chips

125KHz Chips: EM4102,EM4200,EM4550,T5577,Hitag 1,Hitag S etc

13.56MHz Chips: Mifare 1k,Mifare 4k,Mifare ultralight,I-CODE SLI

Key Features

  • ROHS certificated
  • Material: ABS, PVC, Leather
  • Protection: IP67
  • Color: silk printing blue,red,black,transparent etc
  • IUV inkjet number
  • Laser number

Application

  • Access Control & Security
  • Time Attendance
  • Loyalty & Membership Management
  • Ticket & Payment
  • Club/SPA membership management
  • Rewards and promotion

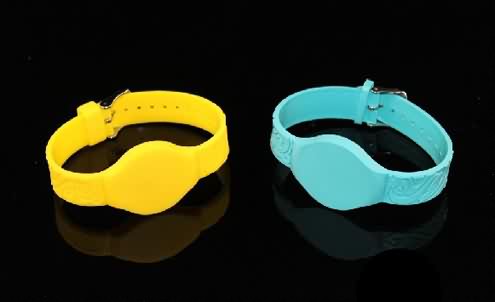

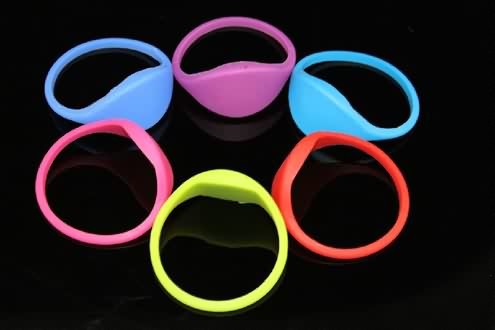

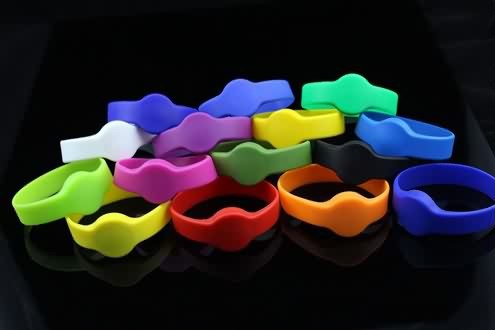

Silicone RFID Wristbands

RFID Silicone Wristband RFID Silicone Wristband
RFID Silicone Wristband Silicone RFID Wristband Watch RFID Wristband RFID Silicone Armband Silicone RFID Bracelets

Material

Silicone

Available Chips

125KHz Chips: TK4100,EM4200,EM4305,T5577

13.56MHz Chips: Mifare 1k,Mifare 4k,Mifare ultralight,Mifare ultralight C,I-CODE SLI,FM1108,Ntag 203

860-960MHz Chips: Alien H3

Key Features

  • Operating frequency: 125 KHz,13.56 MHz,860-960MHz
  • Reading range: 2cm ~ 15cm (Depends on chip and environments)
  • Operating temperature: -25 ºC ~ 85 ºC
  • Memory storage: about10years, according to chip specifications
  • Characteristics: Read only or read/write/ Anti-collision

Application

  • Access Control & Security
  • Healthcare
  • Events ticketing
  • Park Access & expenditure
  • Person Identification
  • Membership Management

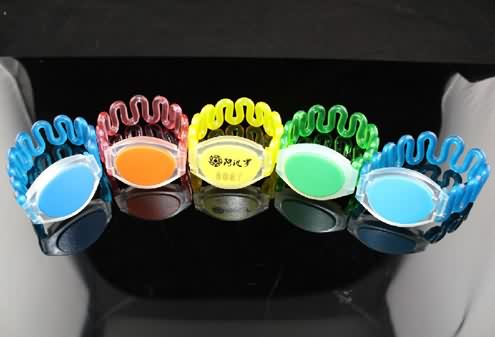

ABS & PVC RFID Wristbands

ABS RFID Wristband ABS RFID Wristband
ABS RFID Wristband Velcro RFID Wristband PVC RFID Wristband

Material

ABS,PVC,Nylon

Available Chips

125KHz Chips: TK4100,EM4200,EM4305,T5577

13.56MHz Chips: Mifare 1k,Mifare 4k,Mifare ultralight,Mifare ultralight C,I-CODE SLI,FM1108,Ntag 203

860-960MHz Chips: Alien H3

Key Features

  • Operating frequency: 125 KHz,13.56 MHz,860-960MHz
  • Reading range: 2cm ~ 15cm (Depends on chip and environments)
  • Operating temperature: -25 ºC ~ 85 ºC
  • Memory storage: about10years, according to chip specifications
  • Characteristics: Read only or read/write/ Anti-collision

Application

  • Access Control & Security
  • Healthcare
  • Events ticketing
  • Park Access & expenditure
  • Person Identification
  • Membership Management

NFC Tag

NFC Tag NFC Tag
NFC Tag Round NFC Tag PVC NFC Tag Epoxy NFC Tag

Feature

  • Surface: Glossy or matte
  • Color: White or custom artwork
  • Size:46x31mm,29x29mm,15x35mm or Custom
  • Thickness: 0.6mm+-0.02mm
  • Frequency: 13.56MHz
  • Protocol: ISO14443A
  • Operating Distance less than 10cm
  • Operating temperature: -20°С to +50°С

NFC Inlay & NFC Label

NFC Label Sticker NFC Label/Sticker
NFC Label Sticker

Feature

  • Surface: Glossy or matte
  • Color: White or custom artwork
  • Size: 46x31mm, 29x29mm, 15x35mm or Custom
  • Thickness: 0.35mm+-0.02mm
  • Frequency: 13.56MHz
  • Protocol: ISO14443A
  • Operating Distance less than 10cm
  • Operating temperature: -20°С to +50°С

NFC Card

NFC Card NFC Card
NFC Card

Feature

  • Dimensions: CR80 85.5 x 54mm x 0.84mm, customization
  • Material: PVC, PET, etc.
  • Card Surface: Matt/glossy finish
  • Color: offset/silk printing
  • Operating Temperature: -20 to +60°C
  • Working Frequency: 125KHz,13.56MHz
  • Reading Distance: 5-8cm depends on reader
  • Application: Access control & time attendance, hotel management, Customer loyalty, Public transportation

RFID Laundry Tag

Rectangle Laundry Tag Rectangle Laundry Tag
Rectangle Laundry Tag RFID Laundry Tag

Round Laundry Tag Specification

round-rfid-laundry-tag-spec

Rectangle Laundry Tag Specification

RFID laundry tag, soft, flexible, convenience wearing, waterproof, and high temperature resistant, tagging for washing, sewing and ironing.

Material: Silicone

Dimension: 90x28mm, 45x30mm, customized,holes on both end.

OperatingTemperature: -50°С-200°С

Color: Blue, Black, white or in customized color(require quantity over 5000pcs)

Available IC′s 13,56MHz, 860-960Mhz

Printing options: Silkscreen print or laser print

RFID Anti-Metal Tag (On Metal)

3M Anti Metal tag 3M Anti Metal tag
3M Anti Metal tag 3M On Metal tag RFID Anti Metal tag

Introduction

Ultrawise’s RFID anti metal tag product has extensively been used for gas bottle tagging or direct apply on metal surfaces.

Surface: PVC/PET/ Paper

Anti-metal layer: wave-absorbing material in thickness 0.1~0.5mm

Size: 15*30mm,25mm Dia, ,35*35mm, 43*26mm ,50*50mm,86*54mm, or as request

Thickness: 0.4~0.8 mm

Printing and Laser Logo, Laser printing number, inkjet print number

Working life: 5 years

Store temperature: -25 ℃~50 ℃

Humidity  20% ~ 90%RH

Working temperature: -40 ℃~ 65 ℃

RFID Disc Tag

ABS Disc Tag ABS Disc Tag
ABS Disc Tag PVC Disc Tag Transparent Disc Tag

ABS RFID Keyfobs Specification

Key application
Patrol system
Tracking goods
Mass transportation ticketing,
Description
Waterproof, Dustproof.
Operating temperature: -20°С to +50°С
Available IC′s 125KHz, 13,56MHz, 860-960Mhz
Printing options:
Silkscreen print
Inkjet print number
Laser print number

PVC RFID Keyfobs Specification

Description
Material: PVC, Transparent PVC
Size: D15,D20,D23,D25,D30,D35,D50
Operating temperature: -20°С to +50°С
Available Chip:
125KHz, 13,56MHz
Printing options
Transparent
Offset Printing, Silkscreen Printing.
Laser Numbering, Inkjet print Numbering.

RFID Dry Inlay

RFID Dry Inlay RFID Dry Inlay
RFID Dry Inlay

RFID Dry Inaly Specification

Operating Frequency:
HF 13.56MHz, UHF GLOBAL 860MHz-960MHz
Standard
ISO14443, ISO15693 ,ISO 18000
Material: PVC, PET
Dimension
HF:300*25mm,86*54mm,80*50mm,50*50mm,
dia.50mm,45*45mm, dia.45mm,40*25mm,,35*35mm
,dia.35mm,dia.30mm,25*25mm,dia.25mm,etc
UHF:300*25mm,120*38mm,100*100mm,100*15mm,
86*54mm,80*50mm,etc
Thickness: 0.10 – 0.15mm ,
Antenna:
HF: AL Etching, Ultrasonic Embedding;
UHF: AL Etching
Bonding:
HF: FLIP chip,MOA2,
UHF: Flip chip
Working temperature: -25C ~ +55C
Store temperature: -25C ~ +65C

RFID Wet Inlay

RFID Wet Inlay RFID Wet Inlay
RFID Wet Inlay Custom RFID Wet Inlay

RFID Wet Inlay Specification

Operating Frequency:
HF 13.56MHz, UHF GLOBAL 860MHz-960MHz
Standard
ISO14443, ISO15693 ,ISO 18000
Material: PVC, PET
Dimension
HF:300*25mm,86*54mm,80*50mm,50*50mm,
dia.50mm,45*45mm, dia.45mm,40*25mm,,35*35mm
,dia.35mm,dia.30mm,25*25mm,dia.25mm,etc
UHF:300*25mm,120*38mm,100*100mm,100*15mm,
86*54mm,80*50mm,etc
Thickness: 0.10 – 0.15mm ,
Antenna:
HF: AL Etching, Ultrasonic Embedding;
UHF: AL Etching
Bonding:
HF: FLIP chip,MOA2,
UHF: Flip chip
Working temperature: -25C ~ +55C
Store temperature: -25C ~ +65C

RFID Prelam / RFID Sheet

LF RFID Prelam 2x5 LF RFID Prelam 2×5
LF RFID Prelam 2x5 LF RFID Prelam 3x8 LF RFID Prelam 3x7 LF/HF RFID Prelam 5x5 HF RFID Prelam 3x6

RFID Prelam Specification

Operating Frequency:   LF 125KHz, HF 13.56MHz
Standard:   ISO14443, ISO15693 ,ISO7815,ISO11784/85
Operating Temperature:   -20℃～75℃
Storage Temperature:   -25℃～80℃
Chip Optional:   Mifare 1 s50、Mifare 1 s70、Mifare Ultralight 10、ICODE2，DESFire 2K/4K/8K、Ti2048、EM4100、EM4200、EM4305、EM4450、TK4100、T5577、Hitag1、Hitag2、Hitags CET5500、Mf1 PLUS 2K/4K and compatible chip.
Material:   PVC, PET, ABS
Dimension:   310mm x 468mm, Max. size 520mm x420mm, A4 210mm x297
Layou:   2*5、3*6、3*7、3*8、4*4、4*5、4*6、4*8、5*6 or any   Customization   of CR80 card or any unit antenna size
Thickness:   HF normal 0.45mm,0.5mm, min.0.3mm ;    LF     normal ,0.6mm, Min.0.5mm[Copper coil], 0.38mm[tag]
Bonding: Wire Bonding

RFID Tire Tag

RFID Tire Tag RFID Tire Tag
RFID Tire Tag

RFID Tire Tag Specification

Vulcanization UHF RFID tire tag, widely use in the tire factory which are applied in storing, servicing, anti-stealing and recollecting the tires, for inventory management. the RFID tire tags our company designs are applied in storing, servicing, anti-stealing and recollecting the tires. This type tag owns low price. They are easy to install. When produce the tires, the tags can be inserted in the mold of the tires.

Description:
Frequency:860~960MHz
Chip: Alien/higgs 3 , or NXP
Working Agreement:ISO18000-6C
Memory: EPC 96bit, User memory 512 bit
Working mode: Passive
Data Store: >10Years,
R/W more than 100K times
Reading Distacne:0~10m
Tag size:105*35*0.5mm

RFID Animal Tag

RFID Animal Tag RFID Animal Tag
RFID Animal Tag RFID Pigeon Tag RFID Ear Tag

RFID Animal Tag Specification

Ultrawise supply the RFID animal tag to helps ranchers round up stock more efficiently, provide feed and water at optimal locations when necessary, and even handle some basic health monitoring such as the frequency with which animals visit feeding stations. A decrease in frequency can be an indication of illness.

Animal Ear Tag
Physical parameters
products size: 80mm x 70mm
Substrate material: TPU(Polyurethane)
Antenna material: PET+AL
Amount material: TPU(Polyurethane)
Packag: 200 pcs/case, 6cases/CTN
(or by customized)
Environmental parameters
Working temperature: -30C~+55C
Storage temperature: -40C~+85C
Performance parameters
Operating frequency: 860~960MHz
Standard: EPC CLASS1 GEN2, ISO 18000-6C
IC: ALIEN H3,Impinj M4/M5
Memory: 96 Bits/512 Bits
Working mode: Read/Write
Data retention: >10 years
Programming cycles: 100,000
Read distance: Approx.4-7m
(depend on the work environment and reader)
Application
Application field: Animal ear tag
( pigs, cattle and etc.)

RFID Chips Catalog

RFID Chips RFID Chips
RFID Chips
