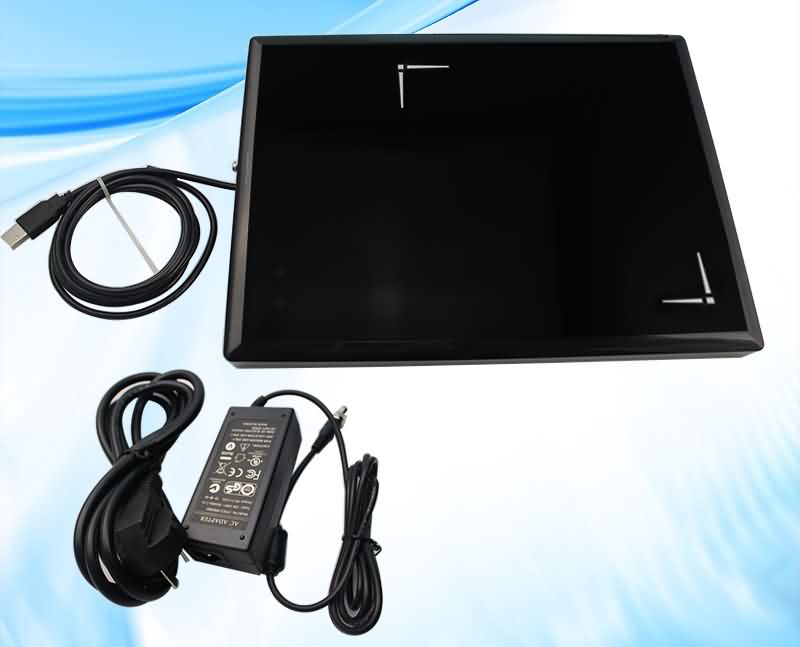

UCF-5205 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Specifications
Features
- Self-intellectual property;
- Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
- 865~868MHz, 902~928MHz frequency band(frequency customization optional);
- FHSS or Fix Frequency transmission;
- RF output power up to 30dbm(adjustable);
- built-in antenna with effect distance up to 1m;
- Support auto-running, interactive and trigger-activating work mode;
- Low power dissipation with single +9V DC power supply;
- Support RS232, RS485, Wiegand or TCP/IP interface;
- Size:15*12*5cm
- Gross Weight: 2.5kg
* Effective distance depends on antenna, tag and environment.
Characteristics
Absolute Maximum Rating
| ITEM | SYMBOL | VALUE | UNIT |
| Power Supply | VCC | 16 | V |
| Operating Temp. | TOPR | -10~+55 | ℃ |
| Storage Temp. |
TSTR |
-20~+75 | ℃ |
Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+12V unless specified
| ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
| Power Supply | VCC | 8 | 9 | 12 | V |
| Current Dissipation |
IC |
350 | 650 | mA | |
| Frequency |
FREQ |
902 | 928 | MHz |
